Hwashi Upgrade Your Production Process with Automatic Cage Welding Machine for Wire Mesh Deck Shelving

Hwashi Upgrade Your Production Process with Automatic Cage Welding Machine for Wire Mesh Deck Shelving

Place of Origin:

China

Brand Name:

HWASHI

Certification:

CE/CCC/ISO

Model Number:

WL-SQ-MF160Kx6

Contact Us

Request A Quote
Hwashi Upgrade Your Production Process with Automatic Cage Welding Machine for Wire Mesh Deck Shelving
Hwashi Upgrade Your Production Process with Automatic Cage Welding Machine for Wire Mesh Deck Shelving Hwashi Upgrade Your Production Process with Automatic Cage Welding Machine for Wire Mesh Deck Shelving Hwashi Upgrade Your Production Process with Automatic Cage Welding Machine for Wire Mesh Deck Shelving
Product Details
Certification:
ISO9001
Type:
Tank Container
Weight:
2000kg
Water Pipe Size:
G1 1/4
Warranty:
12 Months
Specification:
CE/CCC
HS Code:
Standard Export Packing
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
60 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price IBC Totes Production Line Intelligent Control Modular Design Adaptive Welding Energy Consumption User-Friendly Interface online Video

IBC Totes Production Line Intelligent Control Modular Design Adaptive Welding Energy Consumption User-Friendly Interface

Get Best Price
Good price Automatic IBC Production Line Welding Machine,IBC Grid Welding Machine,locking Machine online Video

Automatic IBC Production Line Welding Machine,IBC Grid Welding Machine,locking Machine

Get Best Price
Good price Hwashi IBC Cage Frame Automatic Bending Machine Automatic Production Line ibc tank welding machine online Video

Hwashi IBC Cage Frame Automatic Bending Machine Automatic Production Line ibc tank welding machine

Get Best Price
Good price 1000l Ibc Tank Welding Machine Ibc Automatic Production Line Cage Frame Machine Ibc Machine online Video

1000l Ibc Tank Welding Machine Ibc Automatic Production Line Cage Frame Machine Ibc Machine

Get Best Price
Contact Us
+86-13380655800
export_trade@hwashi.com
86-752-3528326
Contact Now
Product Description



Hwashi Upgrade Your Production Process with Automatic Cage Welding Machine for Wire Mesh Deck Shelving

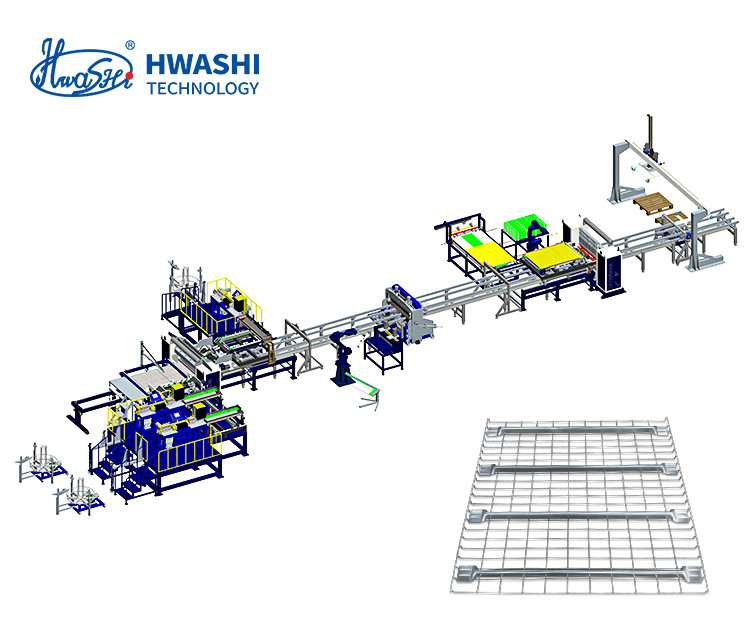

The welding production line designed for this project is specifically intended for the rapid production of Wire pallet rack decking. It enables the fully automated production of wire mesh and stiffener. Achieving automatic wire cutting, feeding, welding, bending, rotating, edges trimming, stiffener automatic feeding, welding, and stacking of finished product. The entire line design requires only two operators, enhancing product quality and production efficiency, reducing production costs. Also it helps to addressing the issues of quality instability and low efficiency associated with manual operations. The production efficiency and automation level are significantly improved.

Working Process

1)High speed wire straightening and cutting machine will cut the wires from the wire coil, and then load the wires to the wire supplying system for automatic wire filling of the cross wires and line wires.
2)Cross wire and line wire filling system will feed the wire to the welding position automatically.
3)The welding machine will do welding automatically.
4)After welding, the robot will pick up the mesh and load it to the wire trimming station for cutting the edges.
5)After trimming, the robot will place the wire mesh back to the conveyor line and move it to bending station.
6)The bending machine will bend one side of the mesh.
7)The rotary system will rotate the mesh, and the bending machine will bend another side of the mesh.
8)The wire mesh will move to the stiffeners (support bars) welding position 9)The mechanical arm will load the stiffeners and fix them automatically to the welding position. 10)The welding machine will do welding of the stiffeners as per drawings. 11)After welding, the unloading mechanical arm will flip and stack the finished product automatically.

1.Fully Automated Welding Process:Utilizes robotic arms and advanced motion control systems to automate wire mesh positioning, alignment, and welding, ensuring consistent quality and eliminating manual labor.

2.Adaptive Welding Technology:Smart sensors dynamically adjust welding parameters (e.g., voltage, current, speed) based on wire thickness, material type (steel, stainless steel), and mesh design, guaranteeing strong, uniform welds.

3.Multi-Layer Mesh Compatibility:Capable of welding single or multi-layer wire mesh configurations, accommodating diverse structural requirements for shelving, storage cages, or industrial decks.


Items
Data
Electricity
Three-phase four wires 380V±10%
Power cable
120mm²,400A
Control method
PLC
Effective welding width
1200mm
Effective welding length
1200mm
Automatic moving speed
200-500mm/s adjustable
Automatic wire filling range
Line wire: 400-1200mm,wire diameter: 2-6mm
Cross wire: 400-1200mm,wire diameter: 2-6mm
Automatic wire filling system number
2 sets
Machine dimension
35000mmx8000mm
Air pressure
0.6MPa
Cooling water
15-25ºC
New Condition Wire Mesh Deck Shelving Automatic Production Line Hwashi Automatic Wire Machine
