Hwashi Door Panel Multi Head Spot Welding Machine

Hwashi Door Panel Multi Head Spot Welding Machine

Multi Head Spot Welding Machine

Door Panel Spot Welding Machine

Place of Origin:

China

Brand Name:

hwashi

Certification:

CE/CCC/ISO

Model Number:

WL-SQ100K

Contact Us

Request A Quote
Hwashi Door Panel Multi Head Spot Welding Machine
Hwashi Door Panel Multi Head Spot Welding Machine Hwashi Door Panel Multi Head Spot Welding Machine Hwashi Door Panel Multi Head Spot Welding Machine Hwashi Door Panel Multi Head Spot Welding Machine
Product Details
Model:
WL-SQ100K
Conductive Way:
Both-Sided
Rated Capacity:
160kVA X2
Applicable Material:
Stainless Steel, Carbon Steel, Aluminum, Metal
Welding Method:
Resistance Touch Welding
Max.Welding Thickness:
2+2mm
Warranty:
1 Years
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
60 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
RELATED PRODUCTS
Good price Resistance Multi Point Rocker Arm Table Seamless Desktop Platform Spot Welding Machine for Metal Distribution Cabinet online Video

Resistance Multi Point Rocker Arm Table Seamless Desktop Platform Spot Welding Machine for Metal Distribution Cabinet

Get Best Price
Good price HWASHI Flexible Crank Arm Metal Sheet Door Panel C Type Crank Arm Table Spot Welding Machine Sheet Metal Spot Welder online Video

HWASHI Flexible Crank Arm Metal Sheet Door Panel C Type Crank Arm Table Spot Welding Machine Sheet Metal Spot Welder

Get Best Price
Good price Hwashi CNC Seven Axis Double Heads Auotmaitc Spot Welding Machine for Door Tube Frame online Video

Hwashi CNC Seven Axis Double Heads Auotmaitc Spot Welding Machine for Door Tube Frame

Get Best Price
Good price Hwashi Door Panel Multi Head Spot Welding Machine online Video

Hwashi Door Panel Multi Head Spot Welding Machine

Get Best Price
Contact Us
+86-13380655800
export_trade@hwashi.com
86-752-3528326
Contact Now
Product Description

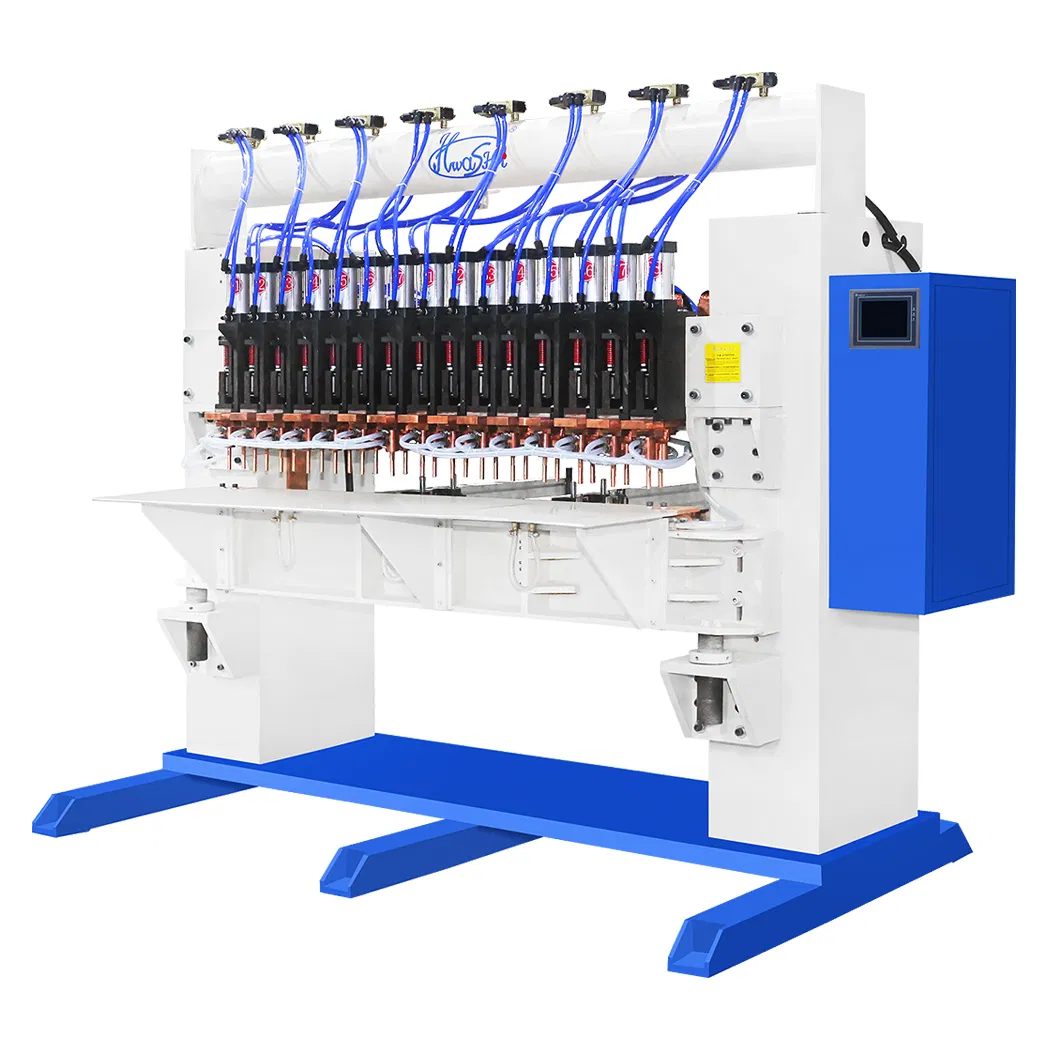

HWASHI Door Panel Multi Head Spot Welding Machine


Hwashi Door Panel Multi Head Spot Welding Machine

Product Description
This Door Panel Multi Head Spot Welding Machine adopts multiple welding heads with automatic welding. You can choose multi head welding at the same time or each head welding in turns. It is suitable for door panel or sheet metal multi spot welding.
The effective welding width is 1000mm to 2000mm while the effective welding length is 300mm (customized). The material thickness is ranging from 0.4mm to 1.5mm.
Working Process
* Manually put the workpiece onto the table;
* Press the start button, then the machine will conduct welding automatically for one line of spots;
* After welding one line, then manually move the product to another line. Then press the start button again.
* Cycle working
Advantages
* Refined welding
* No need for special equipment
* Multi head welding at the same time
* Maximally easy working area access
* Production flexibility
* Reduced labor costs
Product Features
1. Flexible using: you can adjust the welding head distance as per your drawing request. Only need to loose the bolts on the cylinder then you can move the cylinder from left to right.
2. Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3. Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily.
4. Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased.
Table Spot Welding Machine Features
1.Labor saving: With the table spot welder, if the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The two guns move freely, allowing easy access to the desired welding point by one person.
2.Reduces set-up time: Unlike conventional stationary spot welders, this system significantly reduces the need for ancillary work such as electrode adjustment and workbench set-up, contributing to a reduction in overall welding man-hours.
3.Easy to set welding parameters:The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily. 4.Comfortable working position: There is no need to hold the workpiece during welding; it can simply be placed on the table-type electrode. Pressurization is also automatic, greatly reducing the physical burden on the operator. The amount of work that can be done per unit time is also dramatically increased. Can also weld nuts and screws: Welding can be done efficiently by changing the electrode tip according to the type and size of nut, etc.
S.N
Items
WL-SF-MF160K
WL-SF-MF120K
WL-SF-MF100K
1
Input Voltage
380V,3-Phase
380V,3-Phase
380V,3-Phase
2
Input Power
160KVA
120KVA
100KVA
3
Max.Welding Current
32000A
30000A
28000A
4
Max. Electrode Force
2.2KN
2.2KN
2.2KN
5
Welding Capacity
3+3mm
2+2mm
1+1mm
6
Welding Schedule
32 Kinds
7
Effective Size Of Welding Platform
2000x300mm (customized)
8
Welding Head Numbers
10 to 20 (as per your drawings)
9
Distance Between Electrodes
100-300mm
